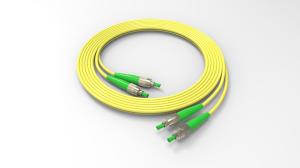

Single Mode Duplex OS2 FC APC To FC APC Fiber Optic Patch Cord
Dierite provides various types of fiber optic patch cord. It is composed of a fiber optic cord terminated with different connectors on the ends, with the SC, ST, FC, LC. Patch cables are used for connections to CATV (Cable Television),telecommunication networks, computer fiber networks and fiber test equipment.
The 9/125μm OS2 single mode fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
FEATURES
● Low insertion loss, high return loss
● Excellent mechanical endurance
● High credibility and stability
● Good in repeatability and exchangeability
● 100% Insertion, Return Loss, End Face and Interference inspection.
Applications:
-
Optic-fiber Communication Systems
-
Optic-fiber Data Communications
-
Optic-fiber Access Networks
-
Optic-fiber CATV
-
Test Equipment
-
Optic-fiber Sensors

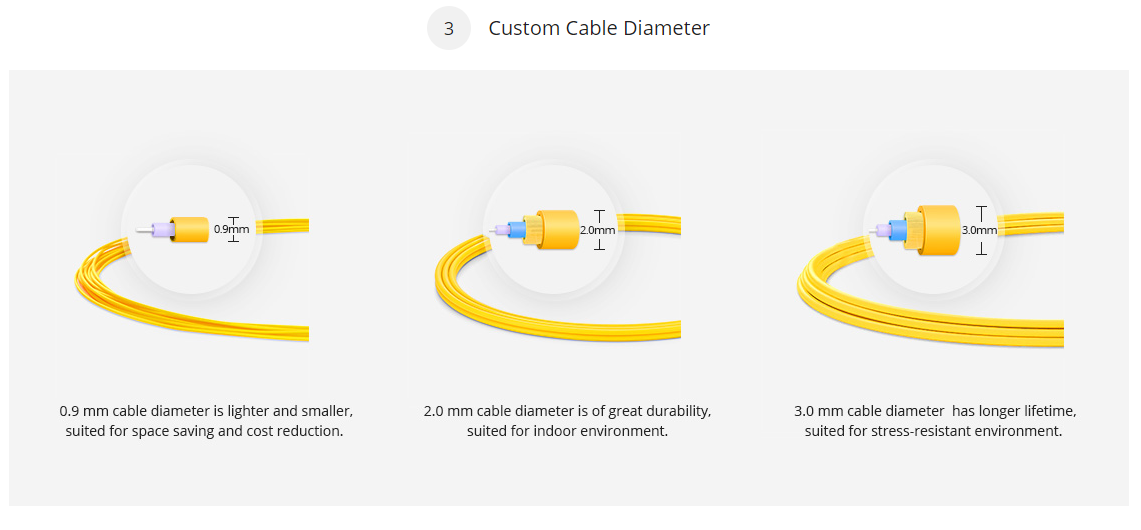

| Cable outer diameter | φ0.9mm, φ1.6mm,φ2.0mm,φ3.0mm or customer specified |
| Cable length | 1m,3m,5m,15m,25m,30m or customer specified |
| Fiber type | B1.3=G652D,B6A1=G657A1,B6A2=G657A2,A1=50/125,A1b=62.5/125, OM3= Maxband*150,OM3=Maxband*300,OM4= Maxband*550,OM5=Maxband*550 |
| Fiber count | Simplex, Duplex |

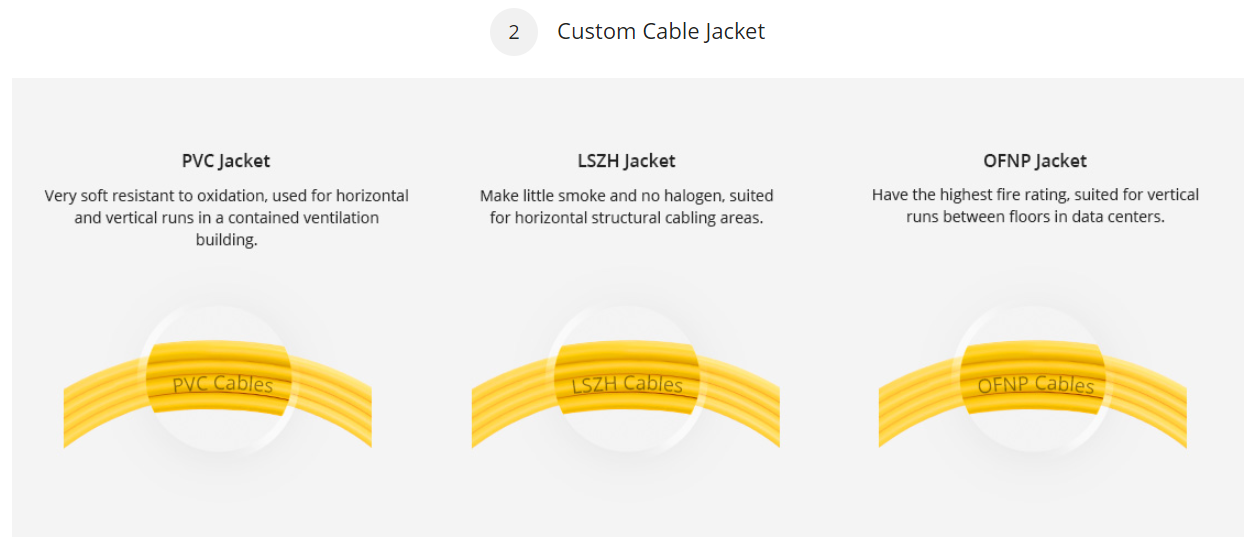

| Outer jacket material | PVC, LSZH |

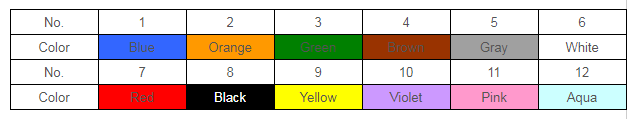

| Outer jacket color | Refer to Chromatogram |
| Connector A side | Connector type | LC, SC, ST, FC |
| Ferrule type | UPC, APC |
| Connector B side | Connector type | LC, SC, ST, FC |
| Ferrule type | UPC, APC |
| Marking&package | Per customer's request or factory standard |
| Characteristic | Item | Test condition | Single mode fiber | Multimode Fiber |
| Optical property | Insertion Loss (dB) | UPC | 1.31μm,LED | ≤0.2dB | ≤0.4dB |
| APC | ≤0.3dB | ≤0.4dB |
| Return Loss (dB) | UPC | 1.31μm,LD | ≥55dB | ≥25dB |
| APC | ≥65dB | - |
| Mechanical test | Impulse test | 1.8 height,8 times | ＜0.1dB | ＜0.1dB |
| Vibration test | 10-60Hz,1mm full amplitude | ＜0.1dB | ＜0.1dB |
| Plug service life | Above 1000times | ＜0.1dB | ＜0.1dB |
| Tensile strength | ≥50N | ＜0.1dB | ＜0.1dB |
| Environmental property | High temperature test | +85℃,96hs | ＜0.2dB | ＜0.2dB |
| Cryogenic test | -40℃,96hs | ＜0.2dB | ＜0.2dB |
| Damp heat test | +40℃,90-95%RH,96hs | ＜0.2dB | ＜0.2dB |
Note:
Delivery length can be customized according to customer's requirements. Marking &Package is factory standard or per customer's request.
